Polyurethane Foam Insulation: A Complete Guide to Types, and Uses (2026)

Polyurethane foam insulation is a high-performance thermal barrier created by reacting polyol and isocyanate, which expands into a cellular structure that seals gaps and prevents air leakage.

It delivers an R-value of R-6.0 to R-7.0 per inch for closed-cell variants and R-3.5 to R-3.8 per inch for open-cell variants.

Polyurethane foam insulation is widely used in residential walls, commercial roofing, cold storage facilities, and chilled water pipe systems across India and globally.

What Is Polyurethane Foam and How Does It Work?

Polyurethane foam itself is a polymer material made by combining two liquid components: polyol plus isocyanate.

The chemical reaction forms a foam that expands roughly 120 times the volume of the original liquid, and that’s what builds a sort of seamless thermal envelope.

Rigid polyurethane foam has a closed cell structure containing low conductivity gas in each cell that reduces heat transfer.

It is highly versatile with almost all surface types, such as wood, metal, concrete, plastic, among others, and bonds to them, which makes it very suitable for use in industrial and construction applications.

Pursuit Industries produces blended polyols and specialty polyurethane systems used as the chemical foundation for high quality foam insulation products.

The company provides formulated solutions for rigid foam, spray foam and insulation panel applications in India.

What Is PU Foam Full Form and Meaning?

PU foam is short for-polyurethane foam. The name “PU” refers to the chemical class of polymer (polyurethane).

PU foam meaning stands for a large family of cellular materials that can be created as a flexible or rigid product for various applications.

PU foam is used for making furniture and mattresses, and the rigid PU foam is applied in the thermal insulation, construction panels and refrigeration systems.

What Are the Main Types of Polyurethane Foam Insulation?

Closed-Cell Polyurethane Foam Insulation

Closed cell polyurethane foam insulation has cells that are filled and closed with a blowing agent that has a low thermal conductivity.

This structure gives the foam superior thermal performance, moisture resistance, and structural rigidity. Closed-cell spray polyurethane foam insulation achieves an R-value of R-6.0 to R-7.0 per inch.

The density of closed-cell foam is approximately 2 lb per cubic foot (32 kg/m³). Closed-cell foam functions simultaneously as insulation, an air barrier, and a Class II vapor retarder when applied at 1.5 inches or greater thickness.

Open-Cell Polyurethane Foam Insulation

Open-cell polyurethane foam insulation is soft and spongy because its cells are designed to be open. The air in the spaces between the cells creates great sound absorption qualities in the foam.

Open cell foam has an r-value of 3.5 to 3.8 per inch. The density of open cell foam is around 0.5 lb/cu ft (8 kg/m³).

Open cell foam is not a vapour barrier and should not be used in moisture exposed or below grade situations.

Rigid Polyurethane Foam Insulation Board

Rigid polyurethane foam insulation board refers to the insulating board manufactured in factory, which is used in wall, floor and roof field.

They are generally provided with aluminum foil, glass fleece or bitumen facing to provide extra security.

Rigid polyurethane foam insulation panels provide uniform density and insulation level, even over large surface areas. The boards can be cut or shaped to the building requirements.

What Is the R-Value of Polyurethane Foam Insulation?

Closed cell polyurethane foam insulation has an R value of 6.0 to 7.0 per inch. Open cell polyurethane foam insulation has an R value of 3.5 to 3.8 per inch thickness.

Closed-cell foam will need about 3″ in thickness and fiberglass batts will need 6-7″.

The high R-value per inch of polyurethane foam insulation makes it ideal for tight wall assemblies and roof decks with limited cavity depth.

The Spray Polyurethane Foam Alliance (SPFA) identifies closed-cell foam as the most thermally efficient spray-applied insulation commercially available.

Rigid polyurethane foam insulation boards also maintain stable R-values over decades of service life.

What Is the Thermal Conductivity of Polyurethane Foam?

The thermal conductivity of rigid polyurethane foam insulation typically ranges from 0.020 to 0.024 W/(m·K) at a mean temperature of 10°C.

This low thermal conductivity is achieved through the use of blowing agents like pentane or HFOs, which have significantly lower thermal conductivity than air.

The thermal conductivity of open-cell polyurethane foam is higher, approximately 0.038 W/(m·K), because its cells are filled with air.

Polyurethane foil board has high closed cell rate (more than 90%) and gas-diffusion-tight facings, thus its thermal conductivity is constant for a long time.

The thermal conductivity of rigid polyurethane foam is not greatly affected by the absorption of water, with a change of only 0.0018 W/(m·K) after 28 days of immersion.

What Is the Temperature Range of Polyurethane Foam Insulation?

Polyurethane foam insulation has an extremely broad temperature range, from -196°C to +150°C. This is suitable for cryogenic applications, industrial refrigeration and for high temperature pipeline systems.

Polyurethane foam insulation is best used in the temperature range of -50°C to +120°C for standard building applications.

Polyurethane foam insulation is used in cold storage and freezer systems in order to keep surfaces from frosting over or forming ice.

Polyurethane foam has consistent thermal resistance over a wide range of temperatures at low mean temperatures for chilled water pipe insulation.

What Are the Top Uses of Polyurethane Foam Insulation?

Residential and Commercial Building Insulation

Attic, exterior wall, crawl space and basement insulation is installed as a continuous layer of foam insulation.

Thermal bridging is eliminated by spray polyurethane foam insulation, allowing the R-Value of wood-framed walls to be reduced by 15-25% due to the fiberglass insulation. In hot-humid climates, unvented assemblies with closed-cell SPF will have significantly lower whole-house cooling loads.

Cold Storage and Refrigeration

Rigid polyurethane foam insulation is most commonly used in refrigerated warehouses, walk-in coolers and blast freezers.

Thinner walls = more cubic footage, because the maximum R-value per inch of polyurethane foam. Closed-cell SPF’s compressive strength (25-40 psi) protects against forklift damage to refrigerated warehouses.

Chilled Water Pipe Insulation

Polyurethane foam insulation for chilled water pipes reduces pipe condensation, loss of energy and freezing.

PU foam is also frequently used in district heating and cooling pipes, oil/gas pipes and pipes for chemical plants.

Pre-insulated pipes with polyurethane foam can be produced as straight or flexible pipes to be easily installed.

Roofing Systems

Closed-cell spray polyurethane foam insulation is directly sprayed onto roof decks to provide a continuous layer of insulation and waterproofing.

With appropriate maintenance and periodic recoating, SPF roofing systems can provide service life in excess of 50 years.

Marine and Industrial Applications

Closed-cell polyurethane foam is used for buoyancy in boats, flotation devices and marine structures.

The foam’s moisture repellent properties are ideal for the marine environment where condensation and bilge water are always present.

Is Polyurethane Foam Insulation Flammable?

Polyurethane foam insulation does burn, and will burn if it comes in contact with an ignition source. But, during manufacturing, flame retardants can be added to comply with fire safety requirements.

Rigid polyurethane foam insulation boards are typically faced with aluminum foil or other fire-resistant materials to improve performance.

Building codes require a thermal barrier (such as 0.5-inch gypsum wallboard) to separate foam plastic insulation from interior occupied spaces.

The Spray Polyurethane Foam Alliance recommends consulting certified contractors to ensure code-compliant installation.

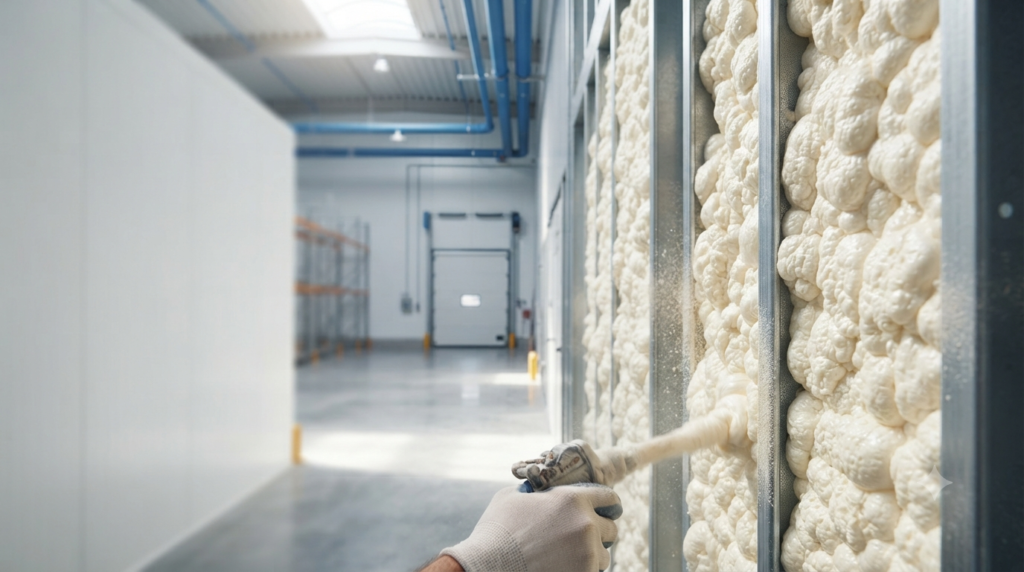

What Is Spray Polyurethane Foam Insulation?

Spray polyurethane foam insulation (SPF) is a two-component liquid system that is mixed at the point of application and sprayed onto surfaces. The foam fills gaps, cracks and irregular shapes when it comes in contact with it, forming a perfect air barrier.

There are two densities of spray polyurethane foam insulation: low-density open-cell spray polyurethane foam and medium-density closed-cell spray polyurethane foam.

SPF insulation must be applied by professional equipment and professionals. Buildings may need to be evacuated during installation and curing (about 24 hours) because of the presence of vapors of isocyanates. SPF is chemically stable and non-toxic to building occupants after it is cured.

How to Choose Between Rigid and Spray Polyurethane Foam?

Use rigid polyurethane foam insulation board on large flat surfaces and in factory controlled areas. Use spray polyurethane foam on retrofit projects, for air sealing and for complex architectural details.

Why Choose Pursuit Industries for Polyurethane Solutions?

Pursuit Industries is an India’s major polyurethane manufacturer and expert in formulation of blended polyols, polyester polyols and specialized chemical formulations for insulation of various applications.

The company produces custom polyurethane formulations, which are designed to meet individual industrial needs, such as rigid foam, spray foam and insulation panel manufacture.

Key capabilities of Pursuit Industries:

• Monthly production capacity of approximately 4,000 MT
• Strict quality control for viscosity, density, hydroxyl value, and moisture content
• Customized formulations for construction, refrigeration, automotive, and adhesive industries
• A reliable supply chain in terms of bulk production and timely delivery throughout India.

Pursuit Industries is a combination of technical expertise and operational excellence that provides polyurethane systems of consistent quality that meet modern insulation requirements.

Frequently Asked Questions

What is the difference between PU foam and polyurethane foam? There is no difference. PU foam is simply the abbreviated form of polyurethane foam.

What is the full form of PU foam? PU foam stands for Polyurethane Foam.

What is the R-value of closed-cell polyurethane foam? Closed-cell polyurethane foam has an R-value of R-6.0 to R-7.0 per inch.

What is the best insulation for chilled water pipes? Polyurethane foam insulation is preferred for industrial refrigeration and chilled water systems due to its low thermal conductivity and wide temperature range.

Is spray polyurethane foam insulation worth the cost? Yes. Spray polyurethane foam insulation delivers energy savings of 20% to 40% annually with a service life of 80 to 100 years.

What is PUR insulation foam? PUR is the abbreviation for rigid polyurethane foam which is the foam used for building and industry insulation.

Conclusion

Polyurethane foam insulation stands as one of the most effective and versatile thermal insulation materials available today.

Its high R-value per inch, superior air sealing, moisture resistance, and wide temperature range make it the preferred choice for residential, commercial, and industrial applications.

Spray polyurethane foam insulation for complex retrofit projects is the right choice, or rigid polyurethane foam insulation boards for a new cold storage facility. It is essential that the right type and source is used.
